DIN 6914 HV Structural Bolt
High-strength class 10.9 preloadable bolt for steel construction.
The DIN 6914 HV bolt is used as a set with a DIN 6915 nut (class 10) and DIN 6916 washer. Wider head dimensions reduce bearing pressure in preloaded connections. Under EN 14399-4 the set ships with a lot certificate.
Usage and selection tips
The values in the dimension table are nominal ISO/DIN sizes; manufacturing tolerances are given on the relevant page of the standard. For stock status, special lengths and coatings, use the sample request form or talk to our sales team.
Dimension table (ISO)
| M12 | s = 22 · k = 8 |
|---|---|
| M16 | s = 27 · k = 10 |
| M20 | s = 32 · k = 13 |
| M24 | s = 41 · k = 15 |
Documents
Similar items

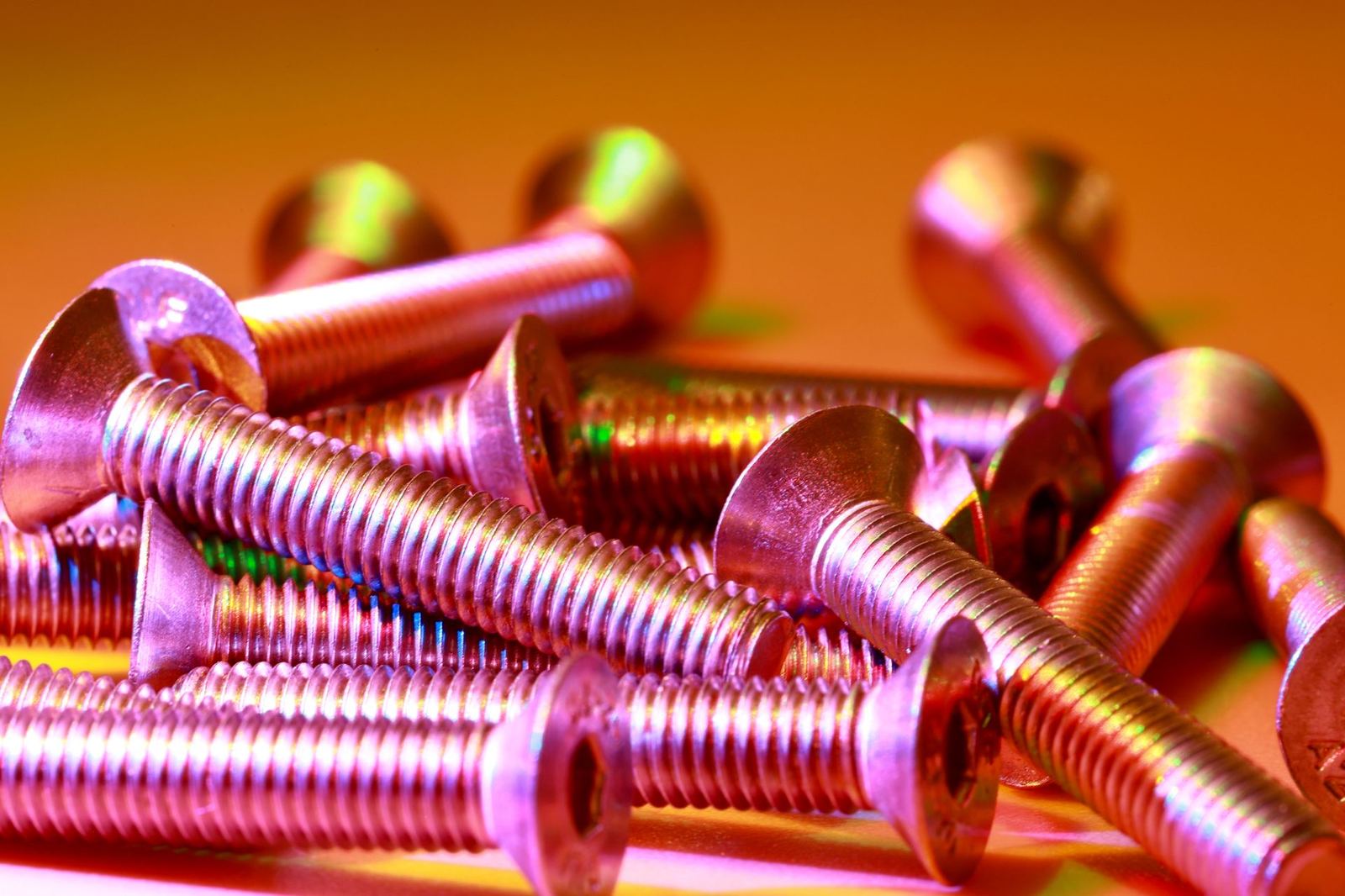

DIN 7991 Countersunk Socket Screw
