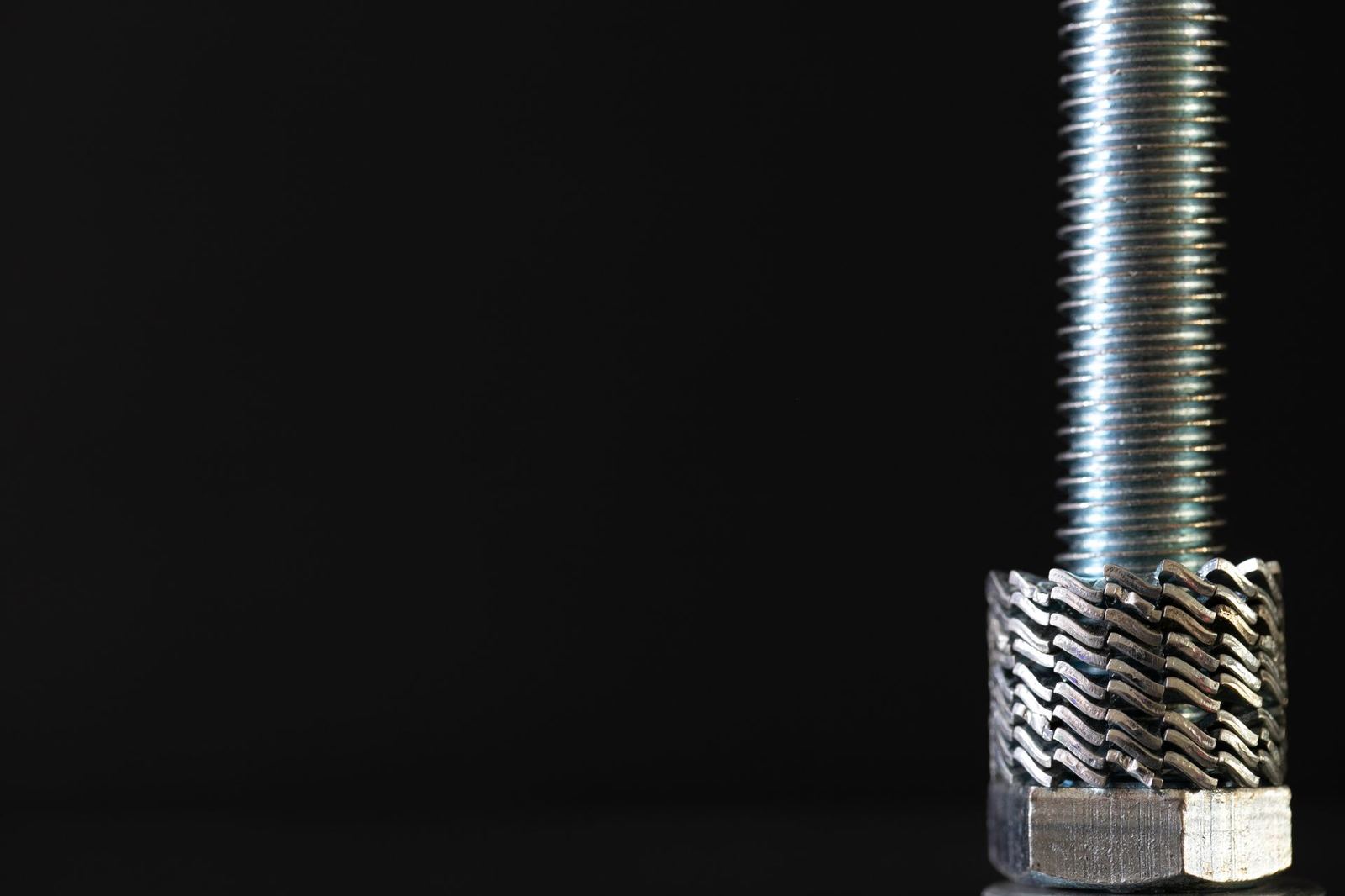

DIN 975 Threaded Rod
Fully threaded rod: M6-M36 for pipe hangers and anchoring.
- Standard
- DIN 975 / DIN 976
- Product family
- Stud / threaded rod
- Material
- Carbon / alloy steelStainless A2 (304)
- Strength class
- 8.8
- Largest thread diameter
- 36 mm
Chemical Anchor System
Vinylester chemical anchor for cracked concrete and near-edge applications.
In chemical anchors load is transferred to the concrete through resin bonded to the stud surface. As there is no expansion stress, near-edge installation is possible. Hole cleaning (3× brushing + 3× air) and correct use of the cartridge mixer nozzle are critical steps.
Usage and selection tips
The values in the dimension table are nominal ISO/DIN sizes; manufacturing tolerances are given on the relevant page of the standard. For stock status, special lengths and coatings, use the sample request form or talk to our sales team.
Dimension table (ISO)
| M8: hole Ø / embedment | 10 mm / 80 mm |
|---|---|
| M10 | 12 mm / 90 mm |
| M12 | 14 mm / 110 mm |
| M16 | 18 mm / 125 mm |
| M20 | 22 mm / 170 mm |
