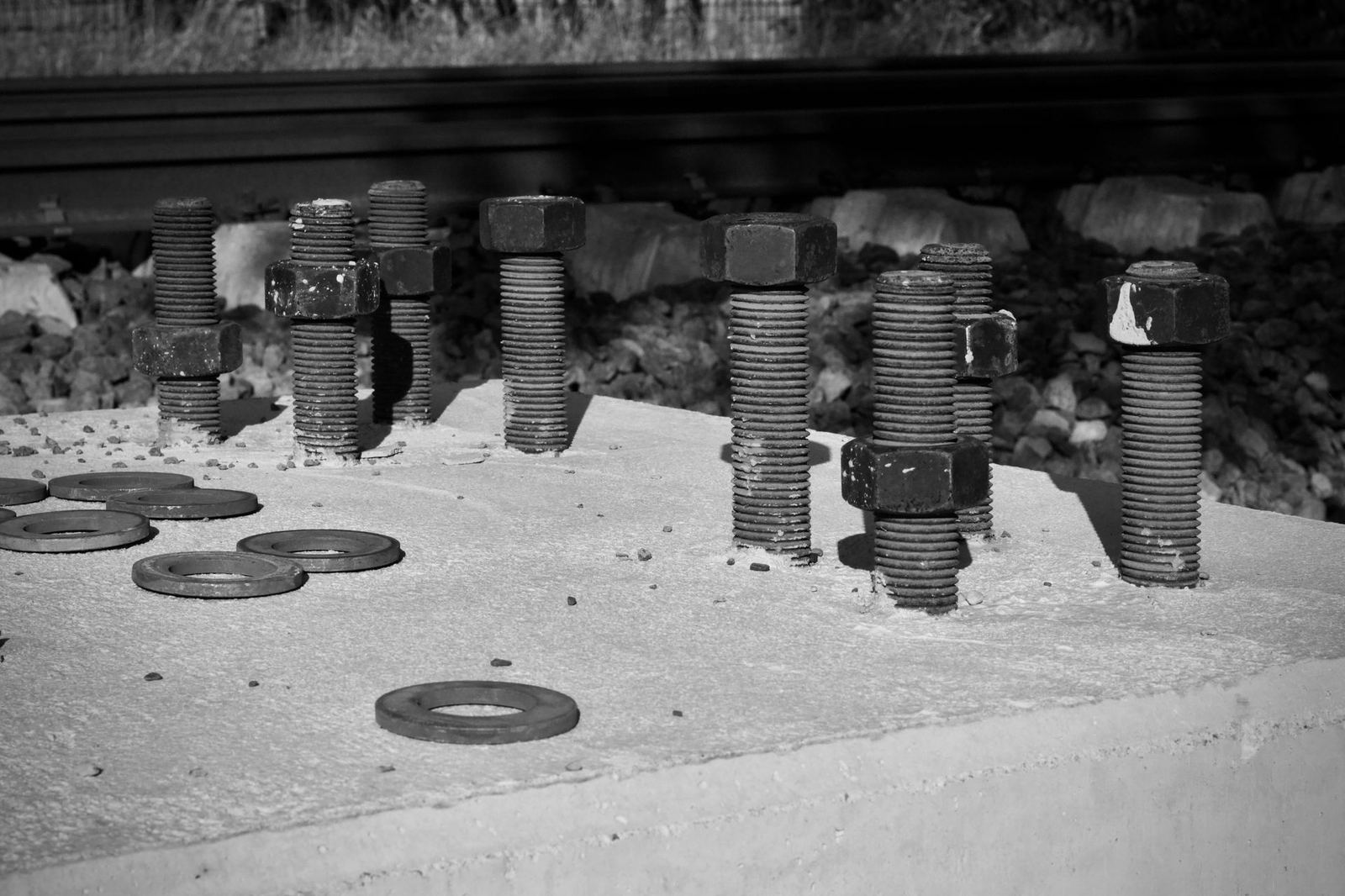

DIN 125-A Flat Washer
Load-spreading flat washer: M3-M64, 200 HV and 300 HV.
DIN 125-A / ISO 7089 washers spread the load under the bolt or nut and prevent crushing of the joint surface. For bolts of 8.8 and above, 300 HV hardness washers are recommended.
Usage and selection tips
The values in the dimension table are nominal ISO/DIN sizes; manufacturing tolerances are given on the relevant page of the standard. For stock status, special lengths and coatings, use the sample request form or talk to our sales team.
Dimension table (ISO)
| M6 (d1 / d2 / h) | 6,4 / 12 / 1,6 mm |
|---|---|
| M8 | 8,4 / 16 / 1,6 mm |
| M10 | 10,5 / 20 / 2 mm |
| M12 | 13 / 24 / 2,5 mm |
| M16 | 17 / 30 / 3 mm |
| M20 | 21 / 37 / 3 mm |
